Engines

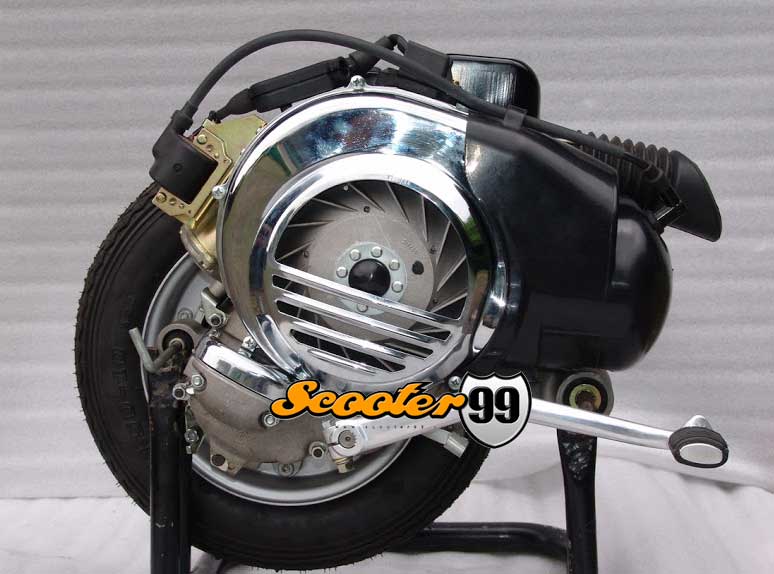

NEW ENGINE PX 150C
  • Engine - Type Single cylinder, two-stroke
  • Displacement - 151 cc
  • Bore × Stroke - 2.32 in × 2.28 in (58 mm × 57 mm)
  • Fuel - Unleaded
  • Compression Ratio - 8:1
  • Max. Torque - 12.9 lbs·ft (17.5 Nm) @ 6,500 rpm
  • Induction - Rotating valve in crankcase
  • Ignition - Electronic CDI
  • Starter - Electric and kick starter
  • Lubrication - mix two stroke oil
  • Cooling - Forced air
  • Gear Change - Manual, four-speed
  • Clutch - Oil wet clutch
  • Maximum Speed - 56 mph (90 kmph)
  • Fuel Tank Capacity - 2.1 gallons (8 Liters)
  • Power - CV 8.2 at 6,000 rpm
  • Lubricant Tank Capacity - .4 gallon (1.5 liters)
  • Rear Wheel Pressed steel rim 2.10 -10"
  • Rear Tire Tube type 3.5 - 10"
  • Rear Brake 5.9 in (150 mm) drum, mechanically commanded
  • Rear Suspension - Engine works as oscillating arm, double effect damper

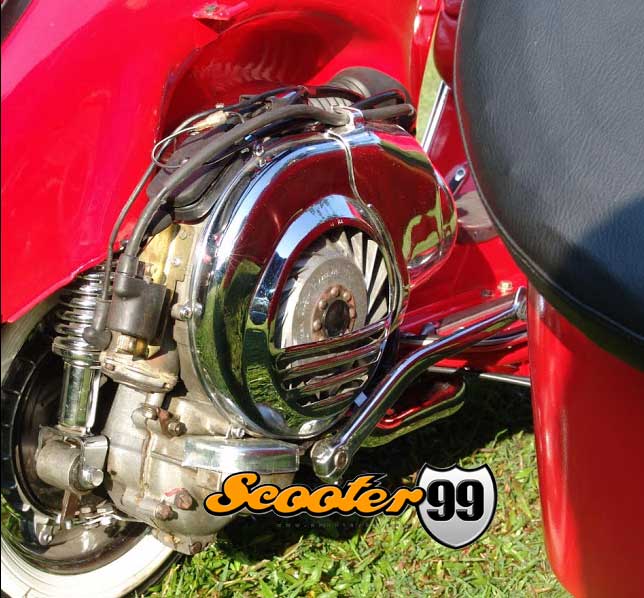

RECONDITION ENGINE with CDI
  • Piston and ring
  • PS Cylinder block ( 3 ports ) for better performance
  • Cylinder head
  • PS De lorto Carburetor
  • Air Filter
  • Air hose
  • Conrod on original Crankshaft
  • 12v Magnet
  • Bearings and Seals
  • Clutch Plate
  • Ignition Coils Set
  • Exhaust with Chrome Megaphone Tip
  • Brake Pedal
  • Kick Start Lever
  • Sparkplug
  • Gasket
  • Upgrade 12 volt CDI electrical system
  • No rebuilt or reused parts

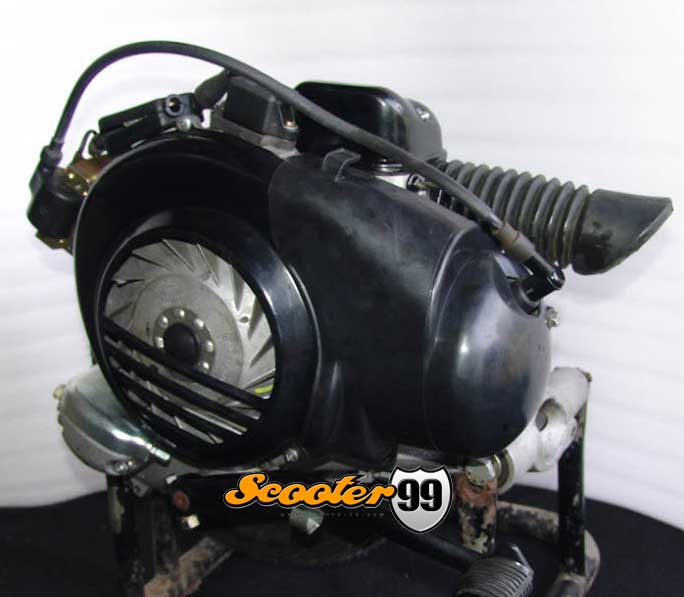

RECONDITION ENGINE without CDI
  • Piston and ring
  • PS Cylinder block ( 3 ports ) for better performance
  • Cylinder head
  • PS De lorto Carburetor
  • Air Filter
  • Air hose
  • Conrod on original Crankshaft
  • 12v Magnet
  • Bearings and Seals
  • Clutch Plate
  • Ignition Coils Set
  • Exhaust with Chrome Megaphone Tip
  • Brake Pedal
  • Kick Start Lever
  • Sparkplug
  • Condenser
  • Point
  • Gasket
